  • TMREC-FHD3S Record Master 3S



TMREC-FHD3S

TMREC-FHD3SRecord Master 3S



Experience seamless HDMI and AV connectivity with the ability to store your visuals on SD cards, USB flash drives (up to a maximum of 512GB each), and external HDDs (up to 2TB).




In Stock

New product

Remaining: 30 Items

¥ 38,500 (Tax included)

TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S TMREC-FHD3S




Model no. TMREC-FHD3SJAN4533239033823

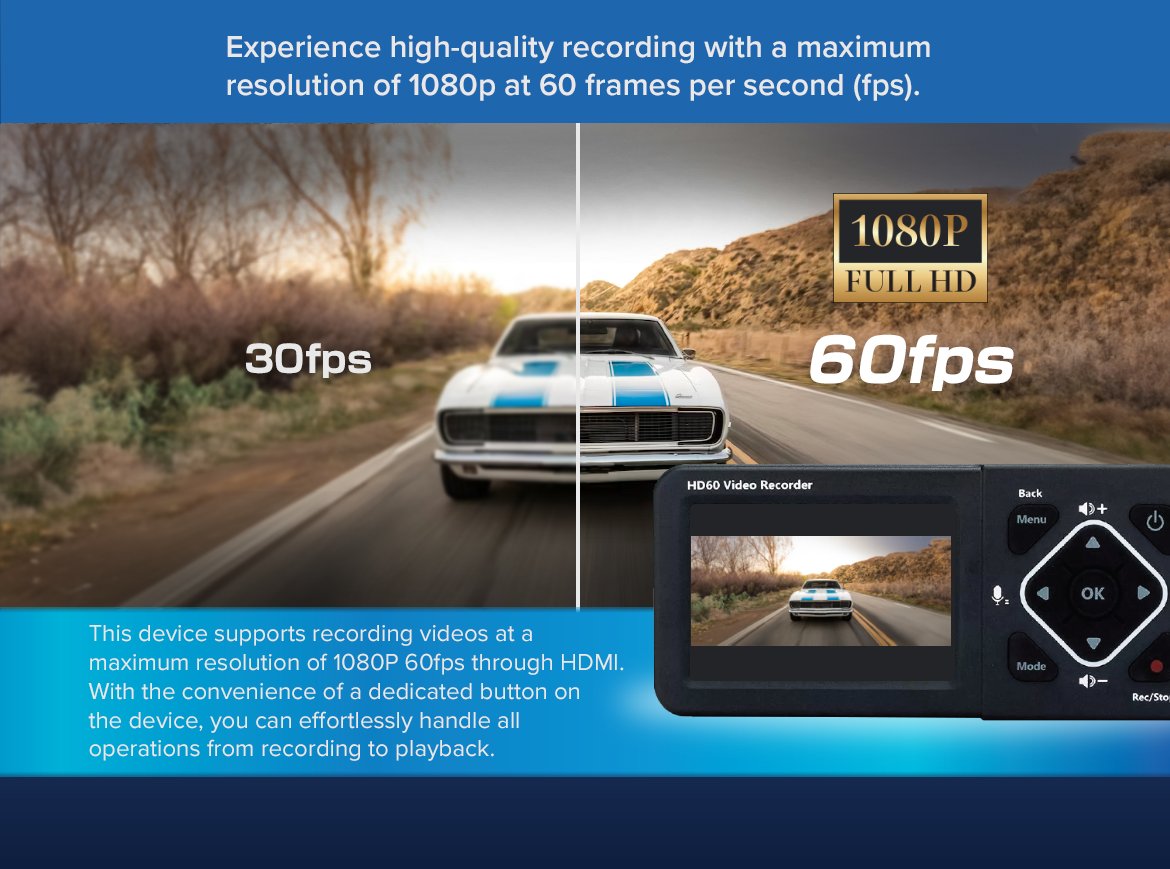

Input Resolution1920x1080 (60p)、 1920x1080 (50p)、 1920x1080 (30p) 、1920x1080 (25p)、 1920x1080 (24p) 、1920x1080 (50i) 、1920x1080 (60i) 、1280x720 (60p) 、1280x720 (50p) 、720x480 (60i/p)、 720x576 (50i/p)

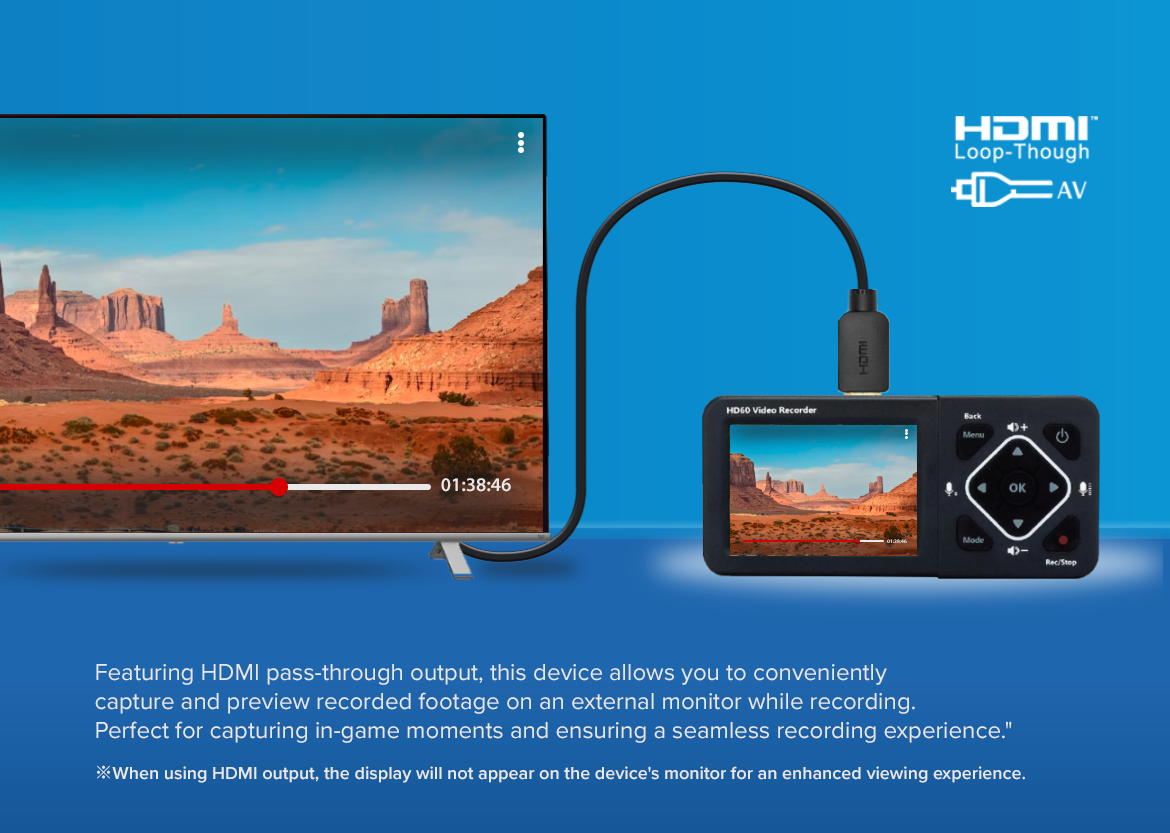

Output ResolutionPass-through maximum 1920x1080 (60p)

Recording

System recording resolution:
HDMI: 1920x1080, 1280x720
AV: 720x480, 640x480
PC mode recording Resolution: 1920x1080, 1280x720

Output formatMP4

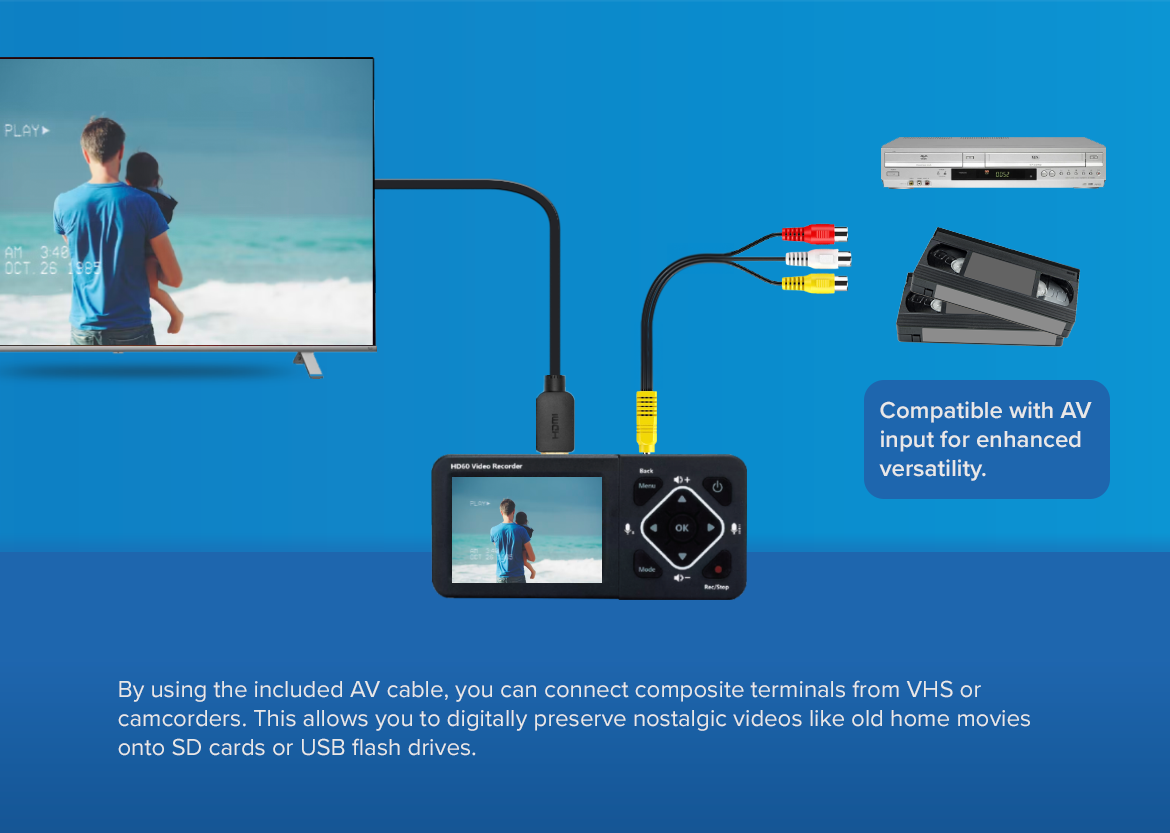

Composite Input
*Dedicated cable included		NTSC, PAL

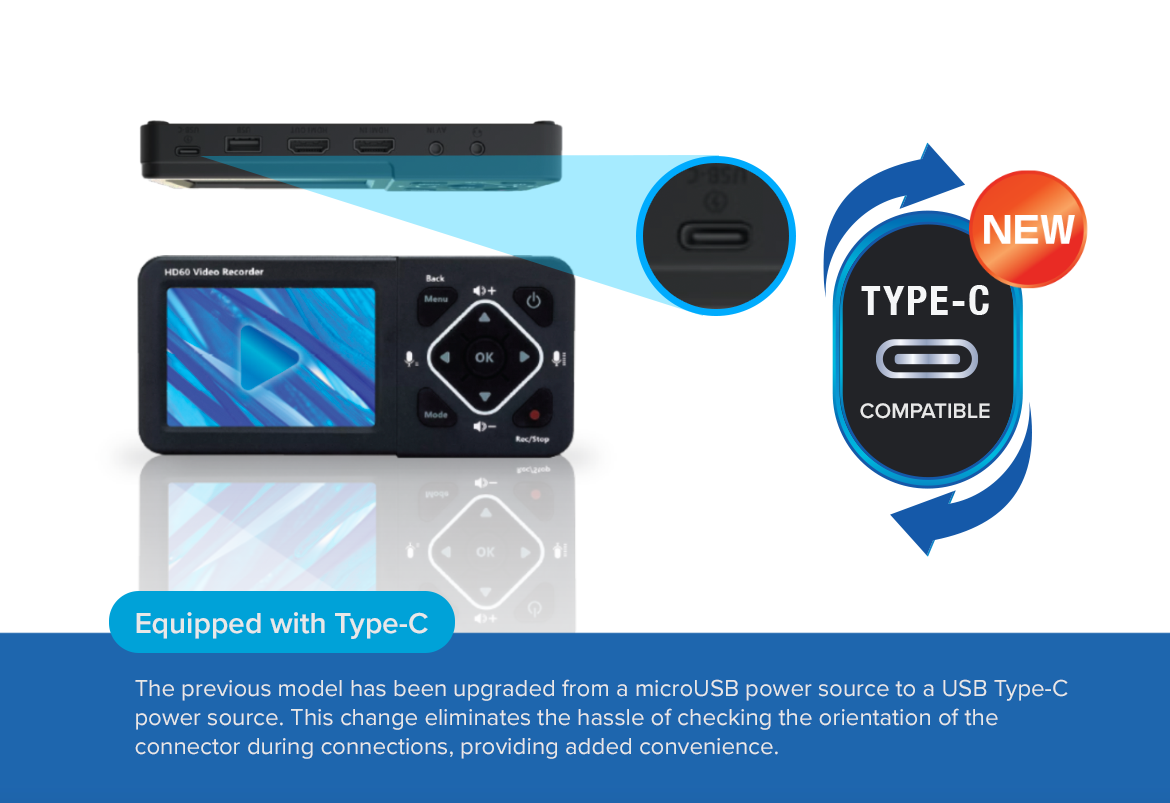

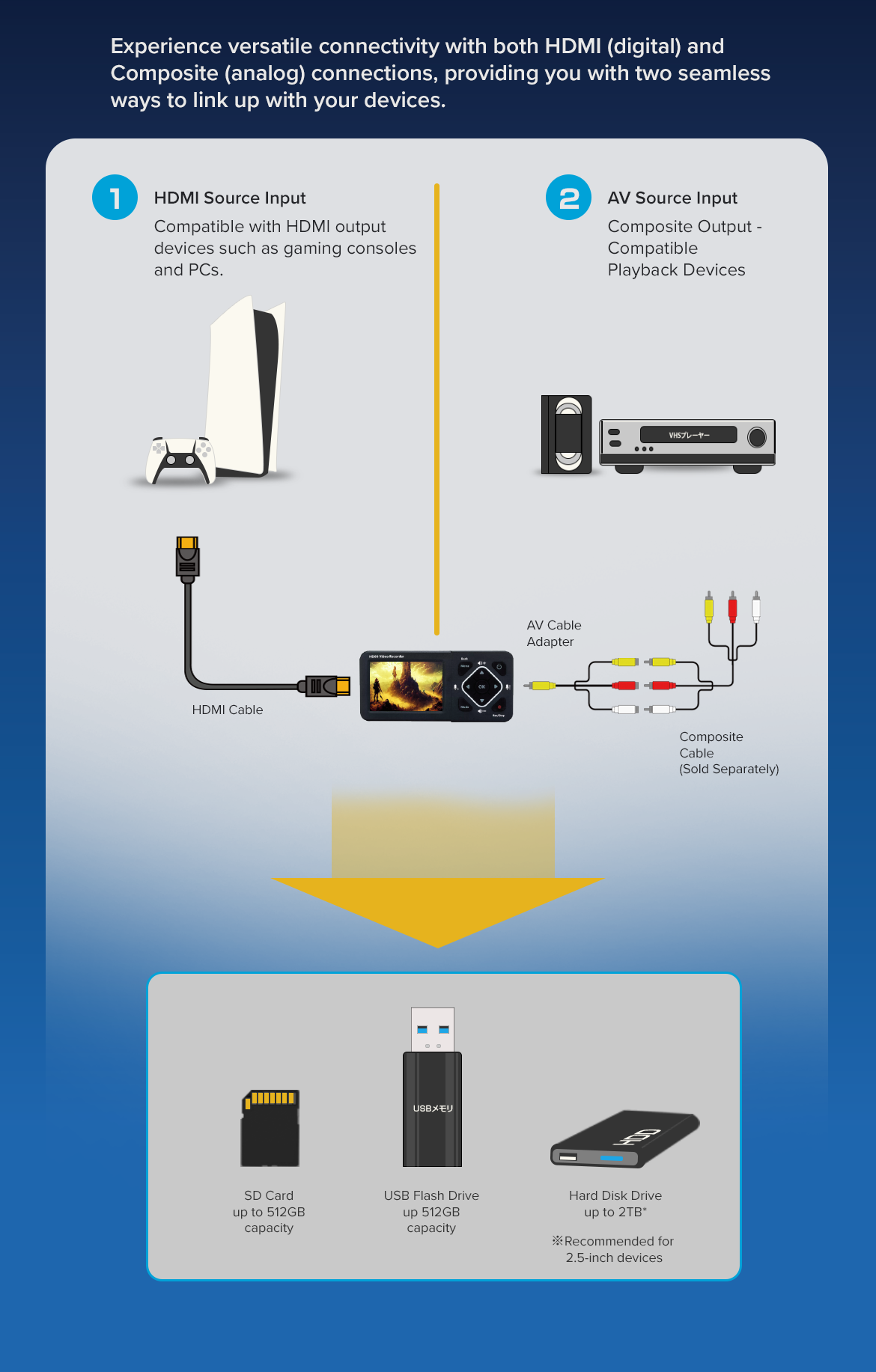

Input InterfaceHDMI, AV, MIC (3.5mm 4-pole stereo earphone microphone), USB, Type-C (power supply)
Output InterfaceHDMI, TYPE-C USB (PC), earphones, speakers
Compatible media file systemFAT32 format: Up to 4GB per file
exFAT/NTFS format: Up to 32GB per file
BitrateMaximum：30Mbps
Supported storage capacityHDD: 2TB (2.5 inch recommended), USB flash memory/SD card: 512GB
Power SupplyDC 5V, 2A

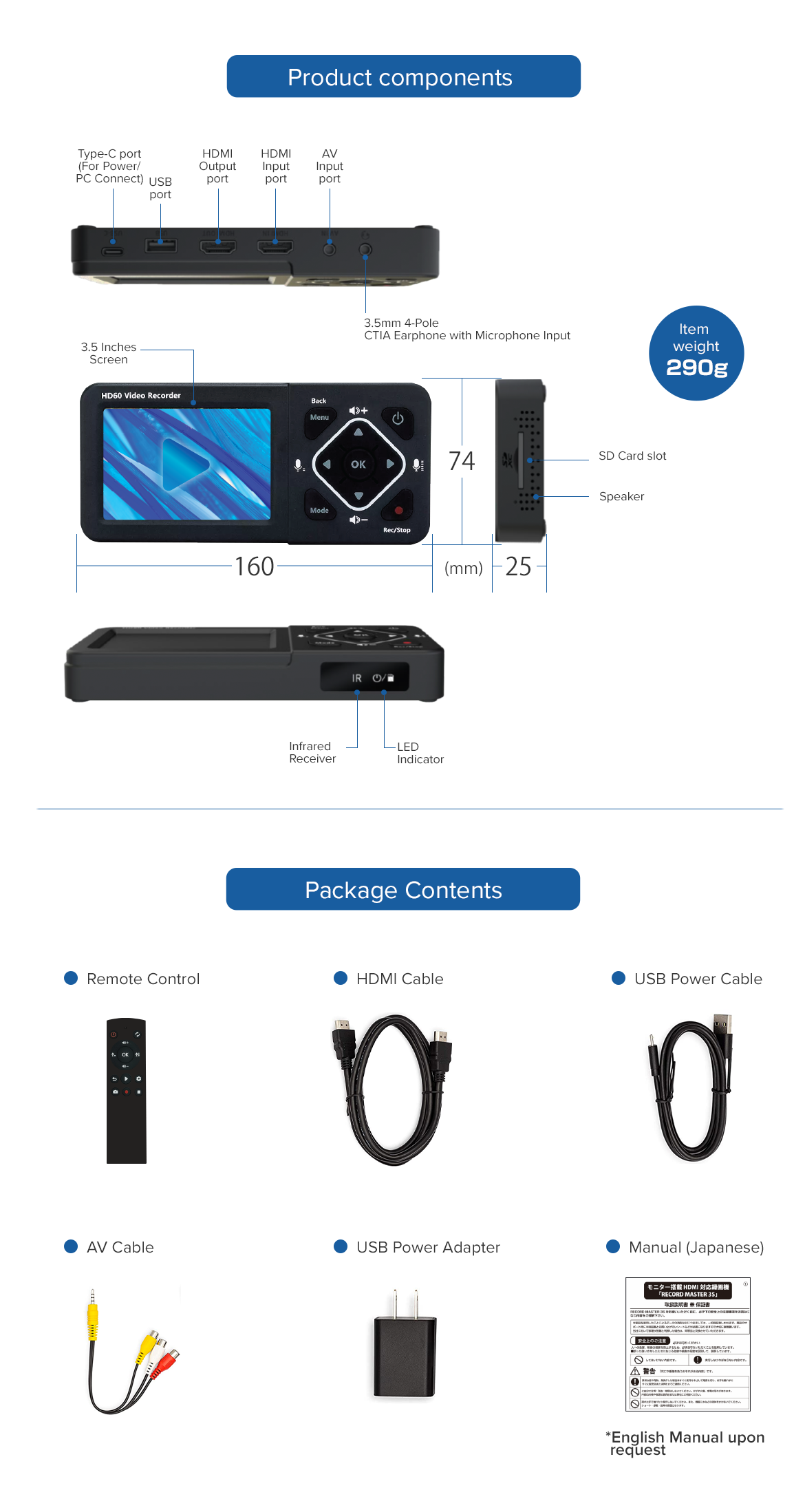

Package contentsTMREC-FHD3S main unit, instruction manual and warranty card,
dedicated remote control, HDMI cable, AV connection cable, USB power cable
USB power adapter
Weight290g
Product DimensionsW160 × D74 × H25 mm
Built-in Speaker Output１W
Power SupplyDC 5V, 2A




※ This product does not guarantee the operation or recording of video with all connected devices.

※ The use of a 2.5-inch HDD is recommended for this product.

※ Playback on this device is limited to videos recorded using this product. It does not support playback of MP4 (H.264 files) recorded on other devices.

※ When formatting storage media with this product, the format will be set to FAT32. If you wish to change the format to another type, please perform the formatting on a PC.

※ When formatting on a PC, please note that it is only compatible with Windows based on the product specifications.

※ PC connection for this product is only supported on Windows and is not compatible with Mac.

※ Except in cases recognized by copyright law for personal use, unauthorized reproduction, modification, or public transmission of images, audio, etc., created using this product is prohibited.

※ Recording or broadcasting in digital format of data that infringes copyright, while being aware of such infringement, is a violation of copyright law.

※ Please be advised that regardless of the circumstances, our company assumes no responsibility for any consequences resulting from the use of this product.
