TMREC-4KS

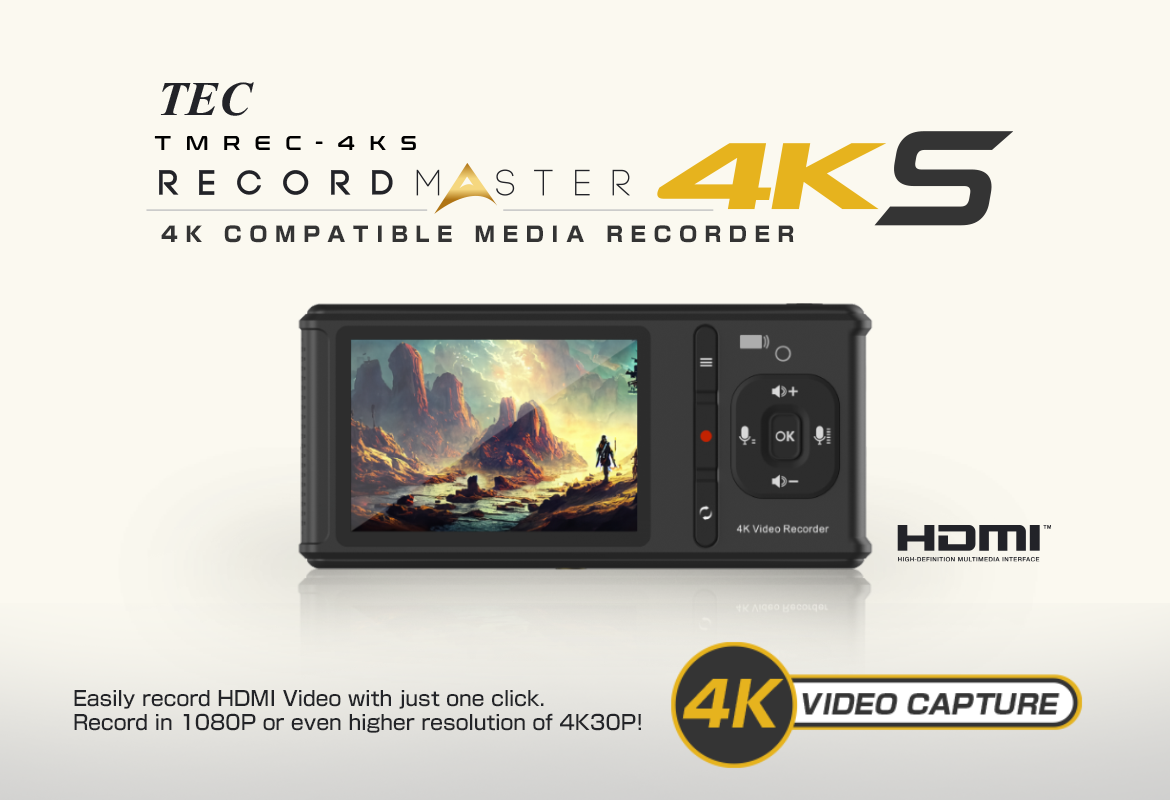

TMREC-4KS HDMI Media Recorder with 4K60P Input Support

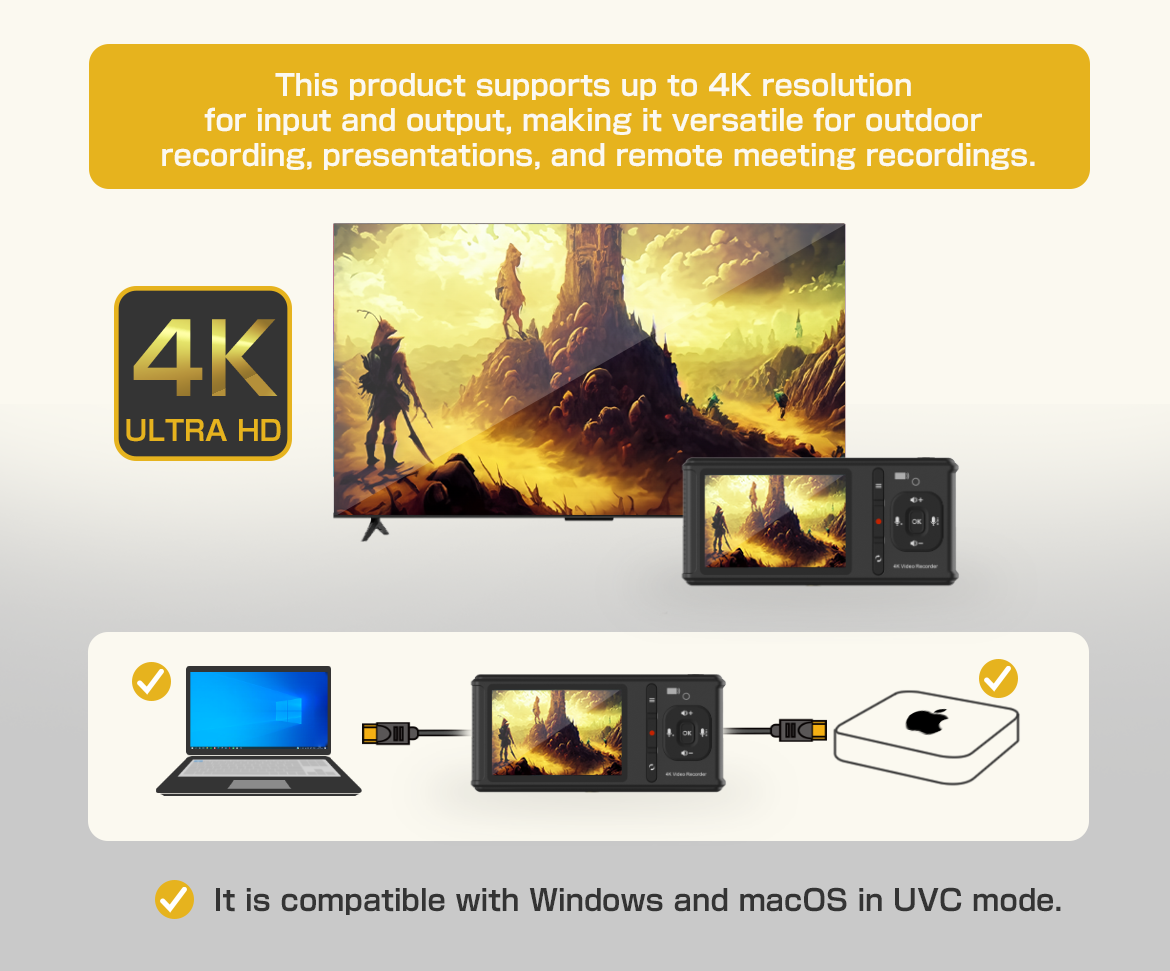

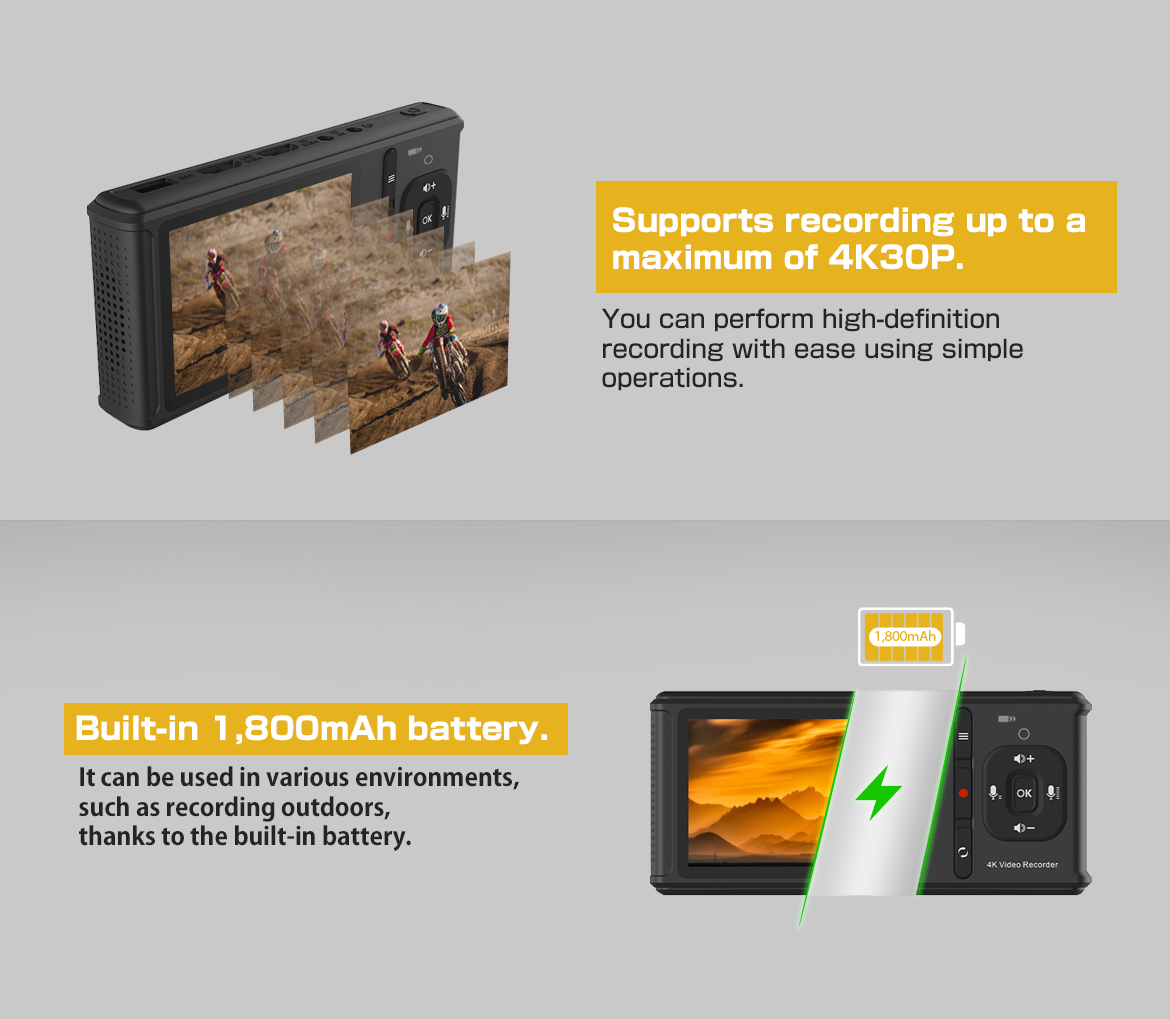

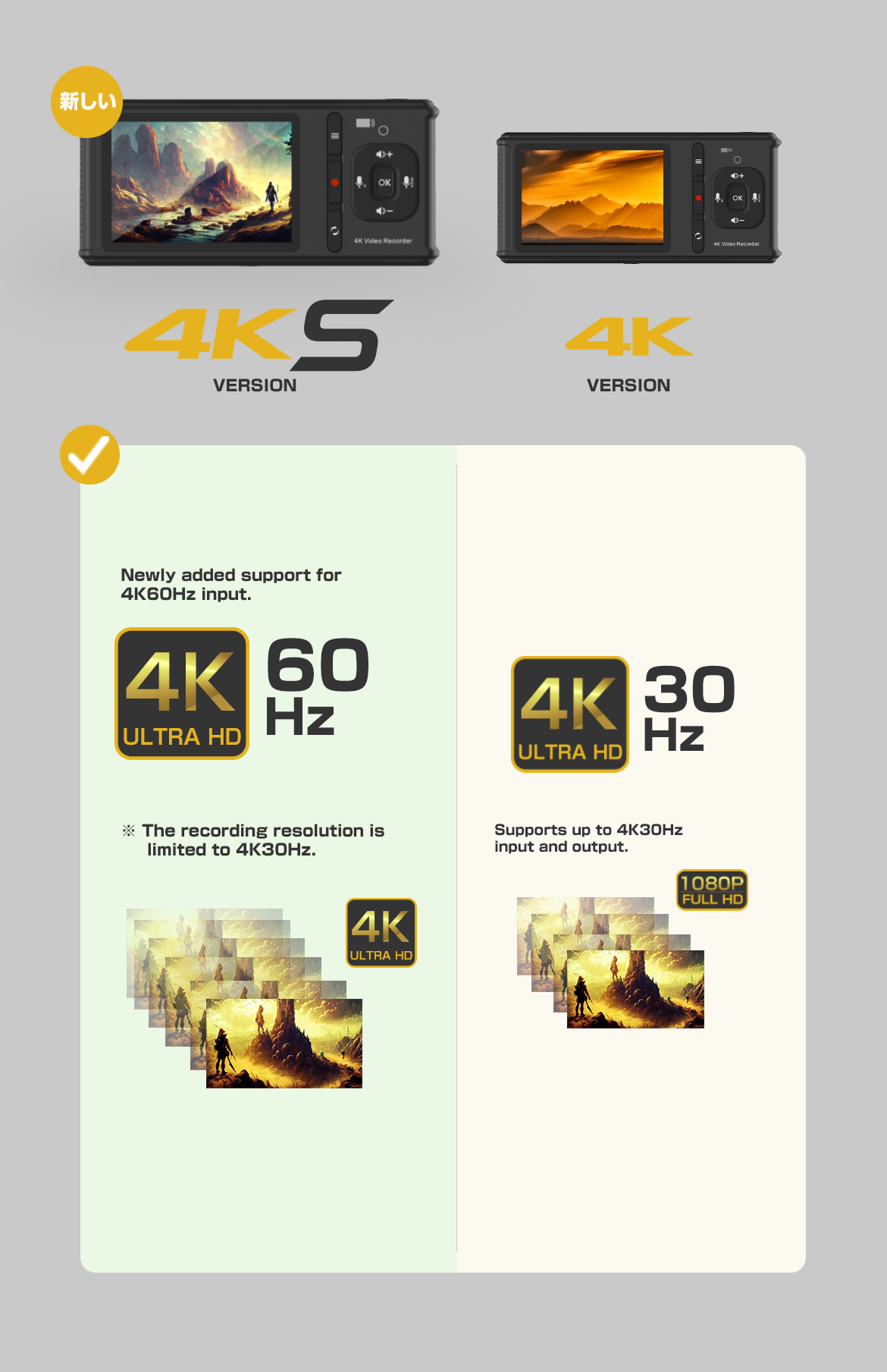

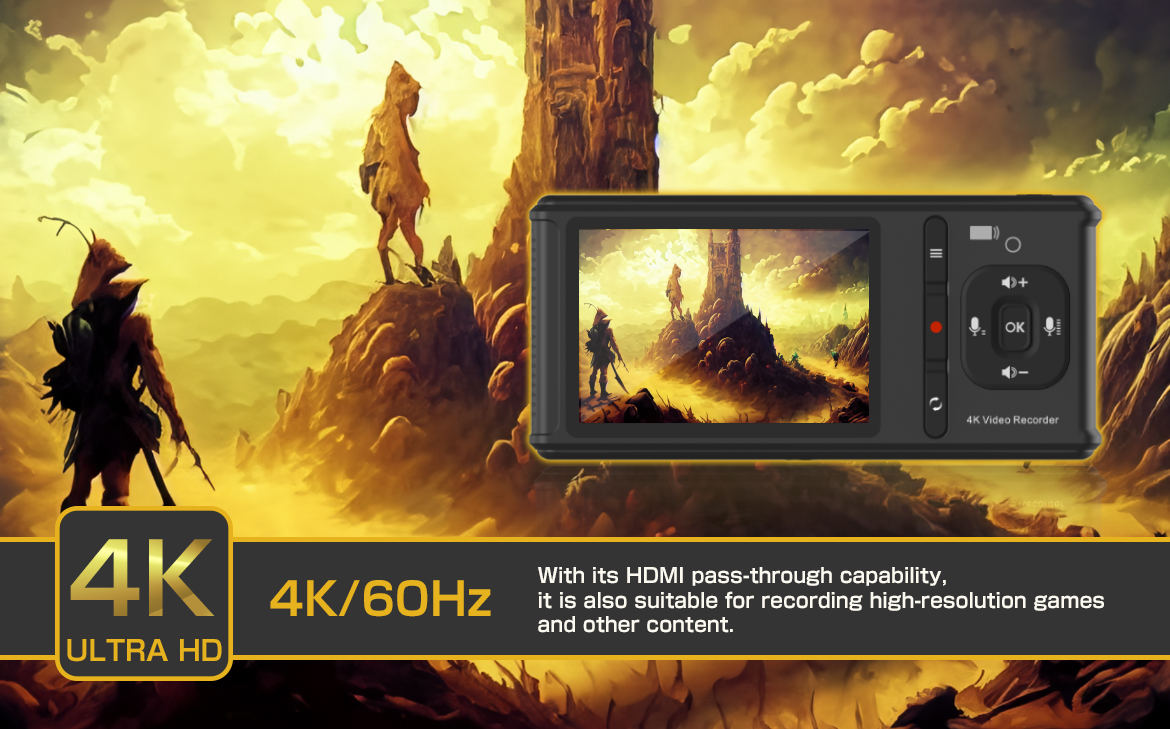

This is an HDMI media recorder with a built-in LCD monitor and battery, capable of 4K60Hz input/output and recording at 4K30P.

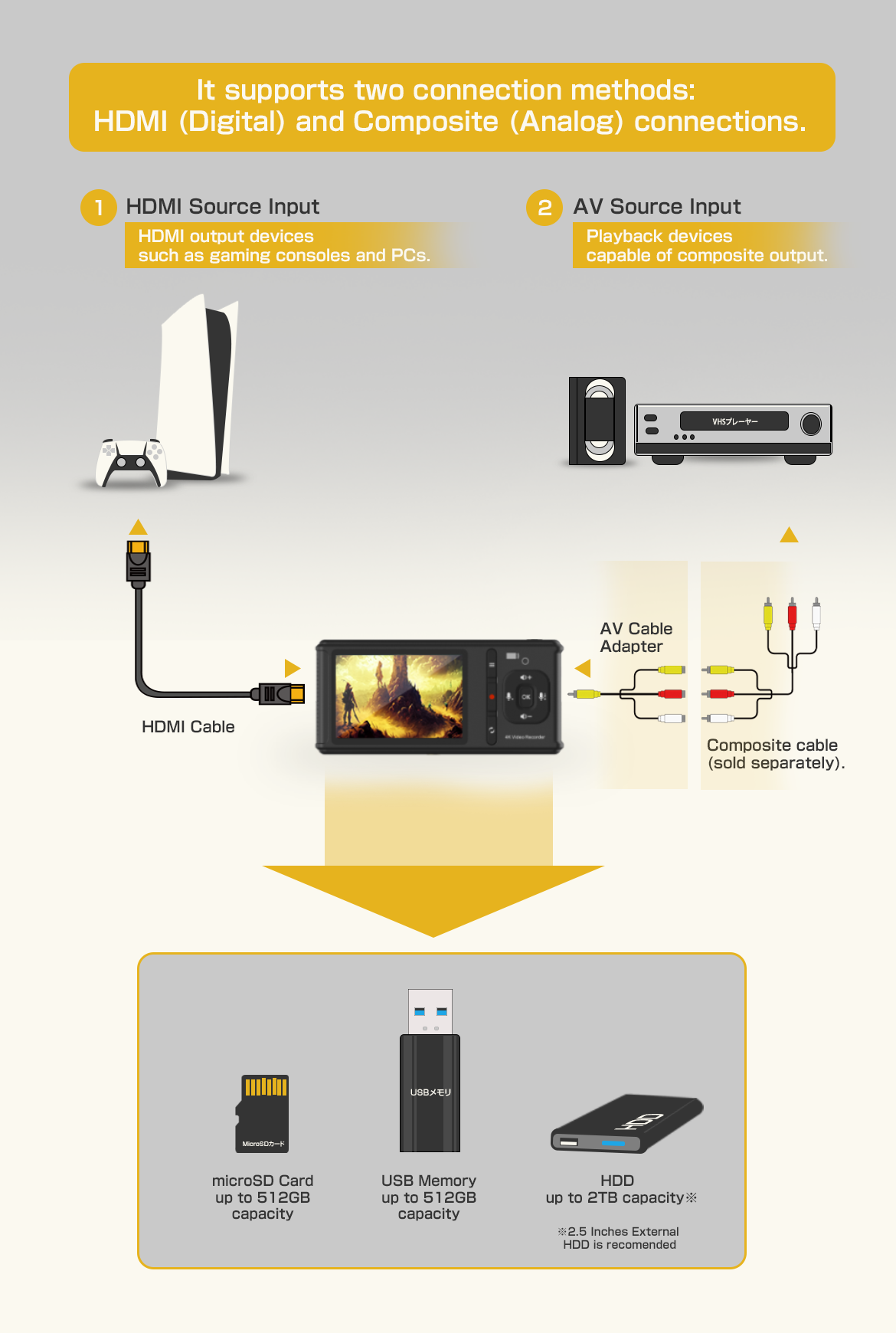

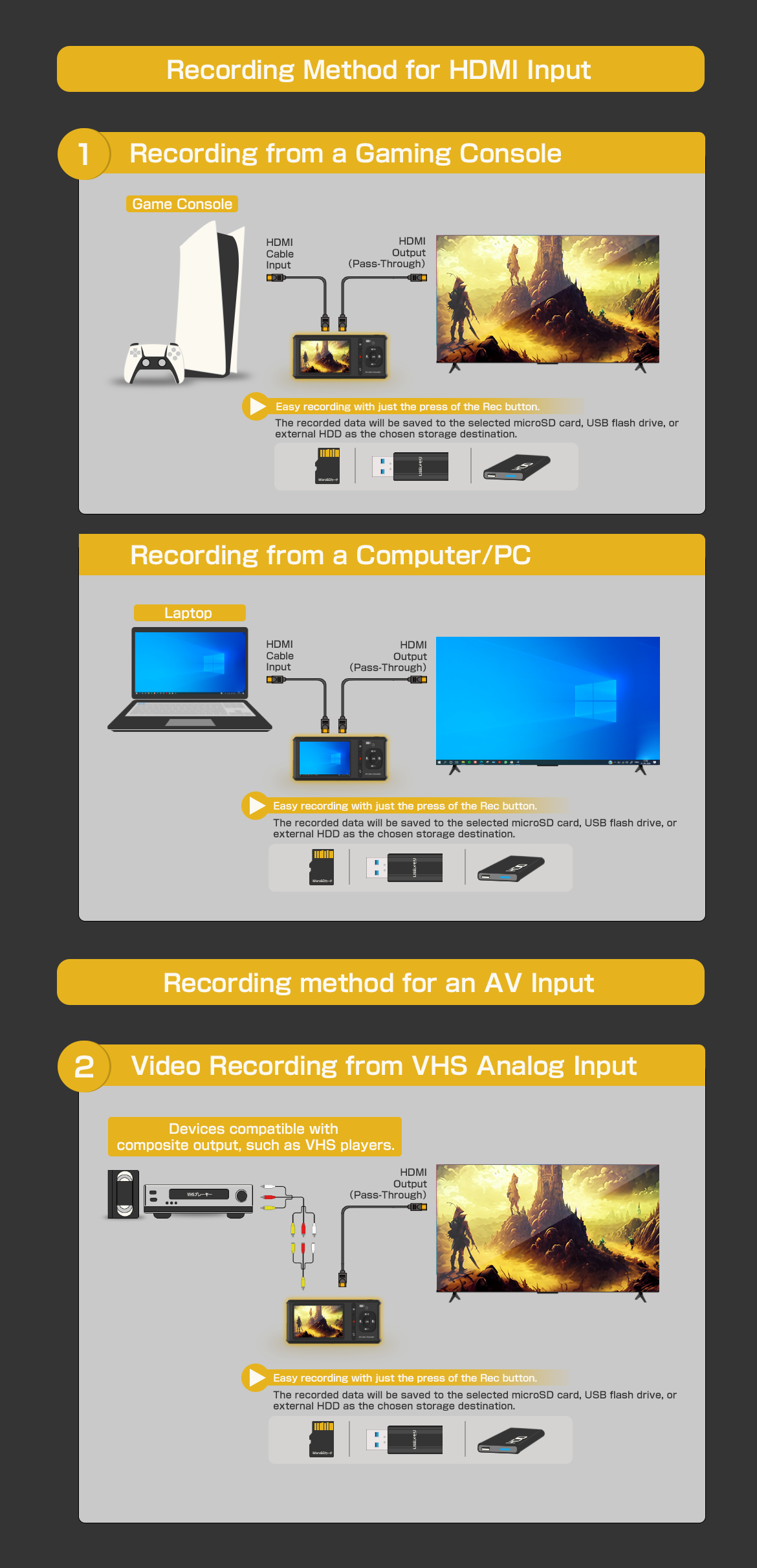

It also supports AV input, allowing compatibility with composite input through the included AV cable. You can utilize it to digitally preserve and store the visuals from analog devices such as VHS.





New product

Remaining: 29 Items

¥ 45,100 (Tax included)

TMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KSTMREC-4KS




Model No.TMREC-4KSJAN4533239033809

Input3840x2160 (60P), 3840x2160 (30P), 720x576 (50p) 1920x1080 (60p), 1920x1080 (50p) 1920x1080 (30p), 1920x1080 (25p) 1920x1080 (24p), 1280x720 (60p) 1280x720 (50p), 720x480 (60p)

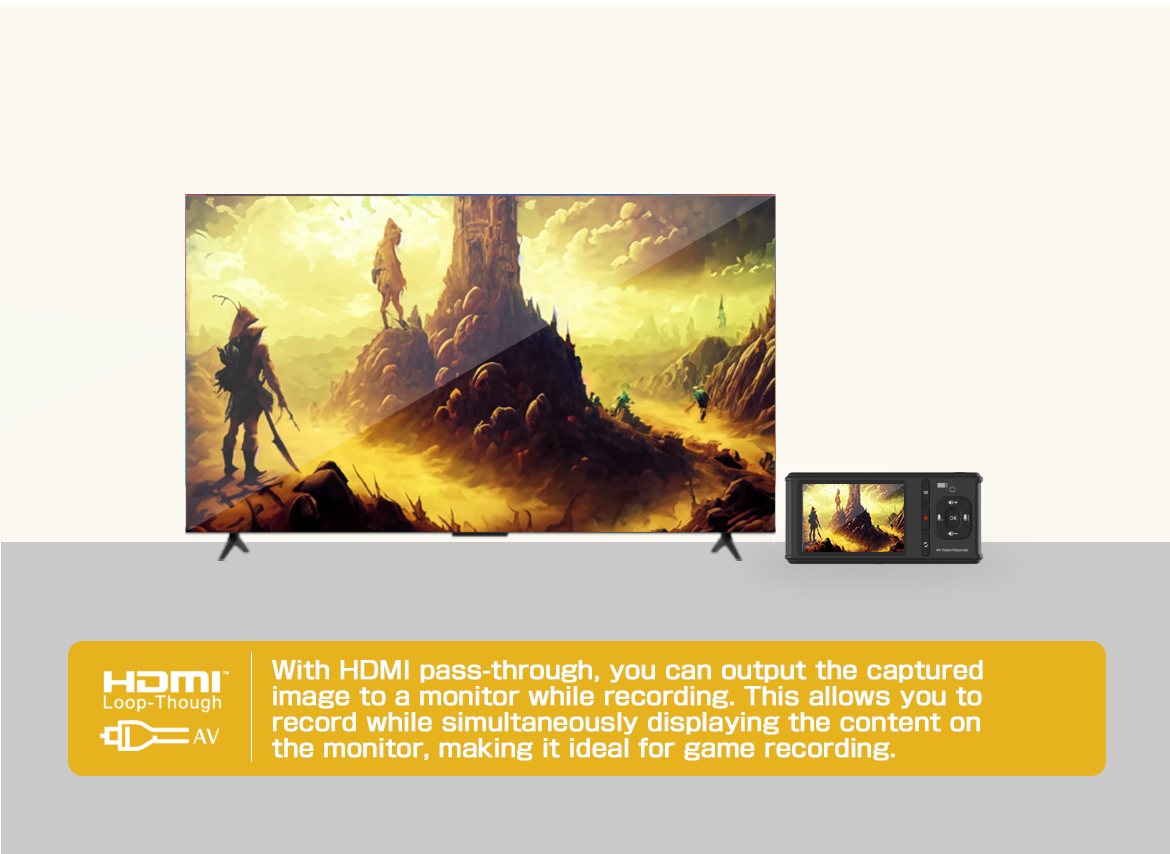

HDMI Output Resolution1920x1080 (60p)
Recording ResolutionHDMI input recording resolution：
3840×2160(60p)、3840×2160(30p)、1920×1080(60p)、 1280×720(60p)

Composite Input Resolution
Auto-Detect＝720 × 480（3：2）Or 640 × 480（ 4 : 3 )
640 × 480 （4 : 3）Fixed
※Recording bitrate for AV input is 5MBPS
Recording FormatMP4 (H.264)
Composite InputNTSC、PAL

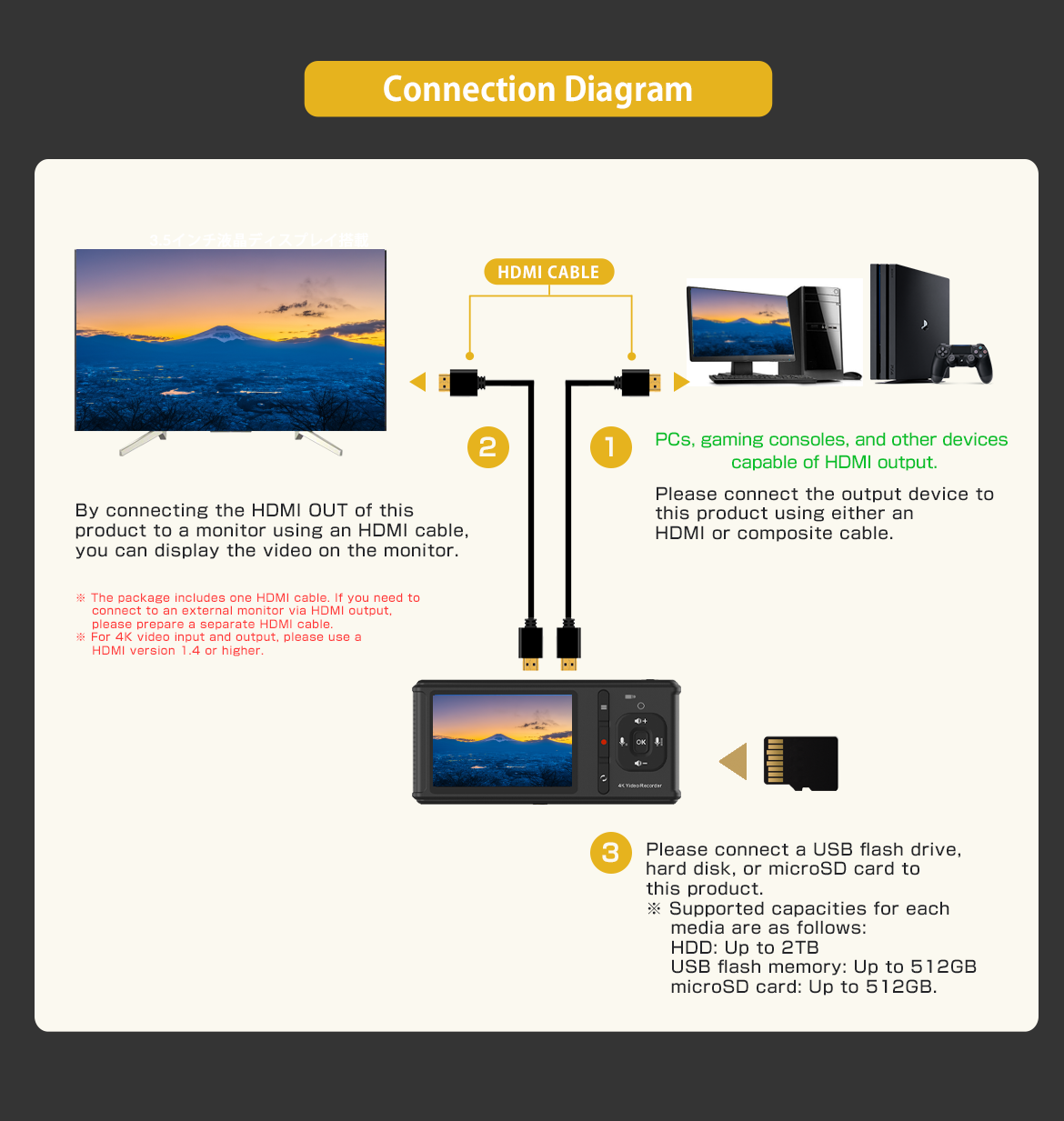

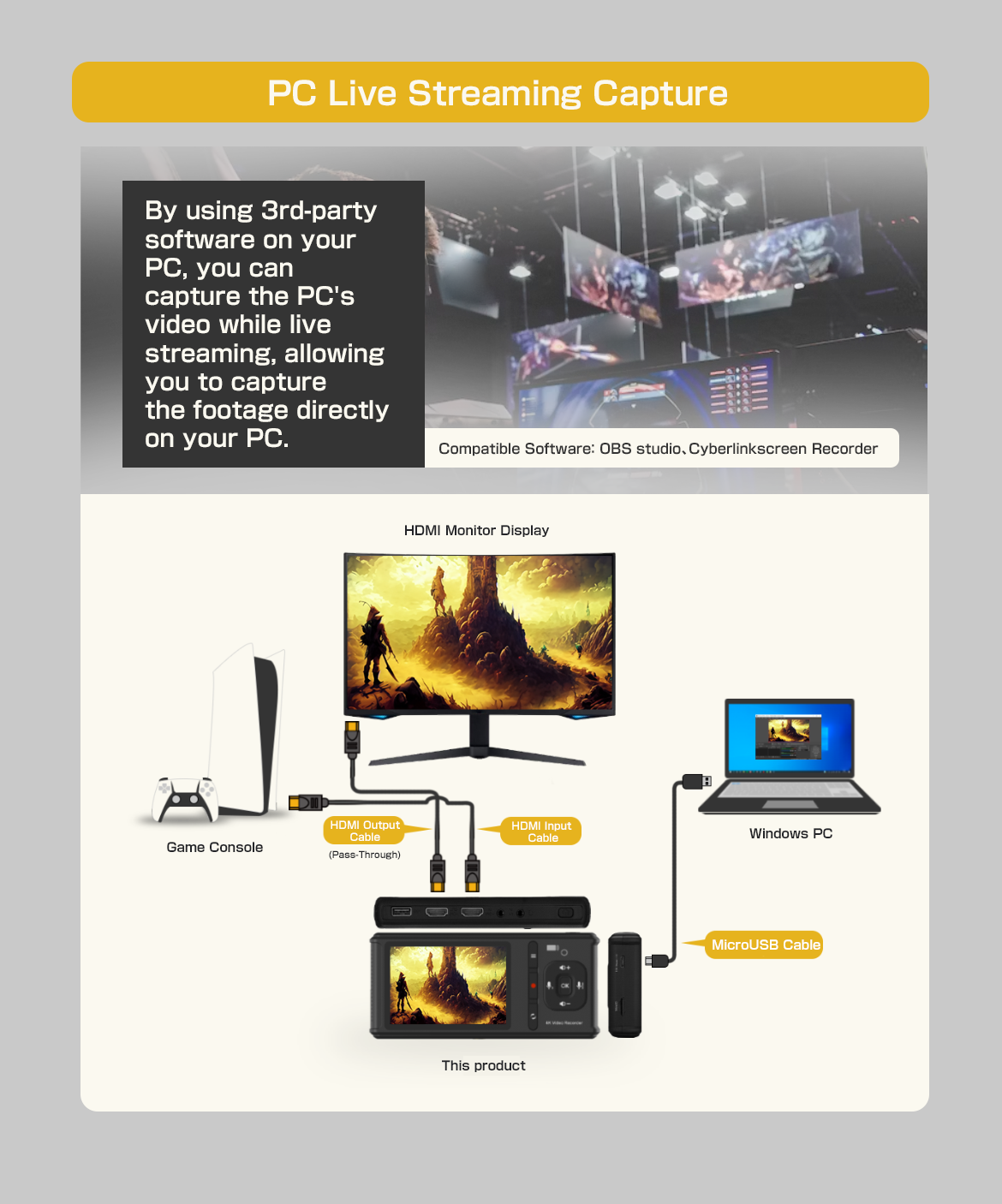

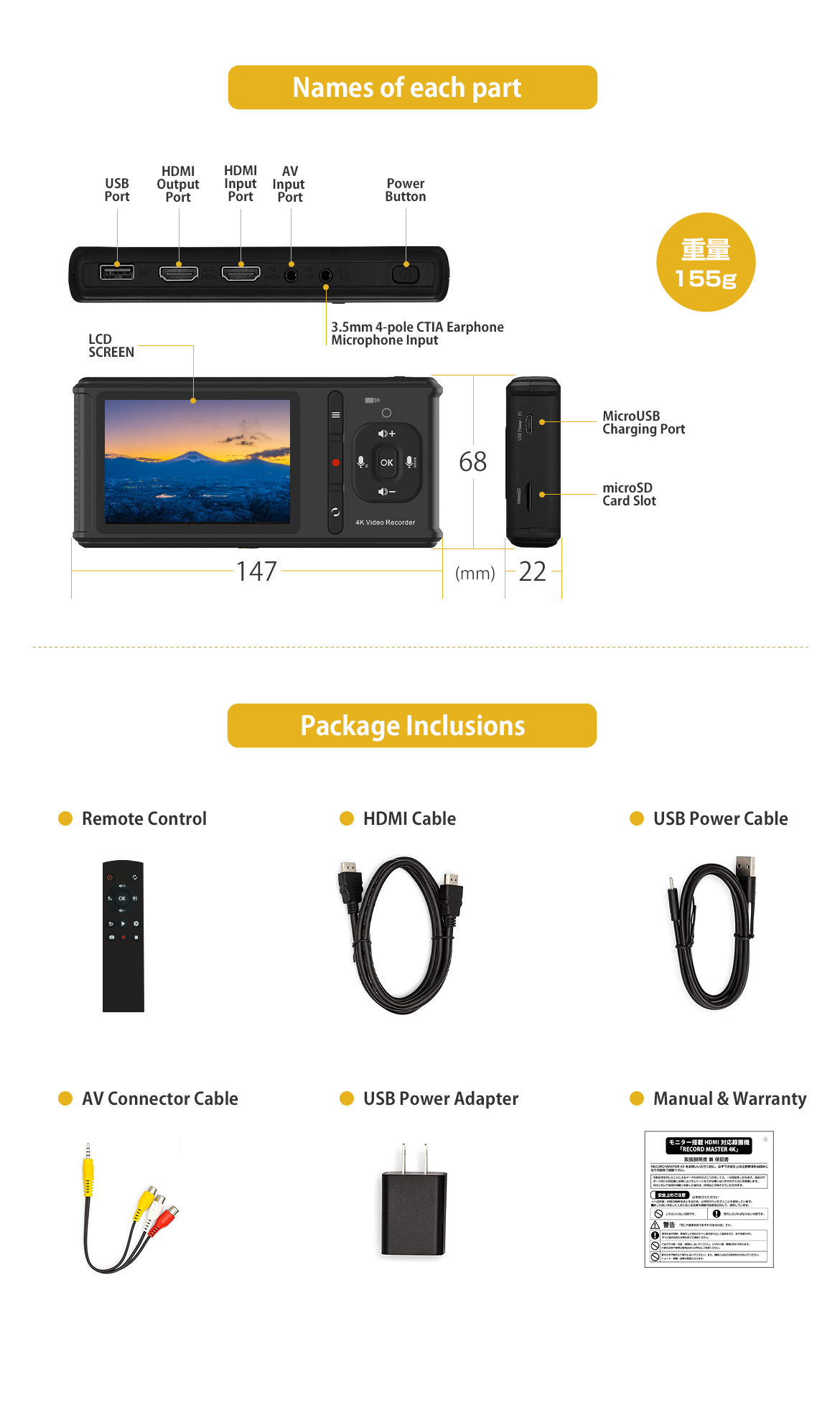

Input TerminalHDMI、AV、Earphone (4-pole CTIA earphone microphone)、 microUSB
Output TerminalHDMI、microSD、USB、Earphone
Supported File SystemFAT32、NTFS、exFAT
1 file recording capacity for each file systemUp to 32GB (NTFS / exFAT)、4GB(FAT32)
Recording Bitrate30 / 25 / 20 / 15 / 10 / 5 (Mbps)

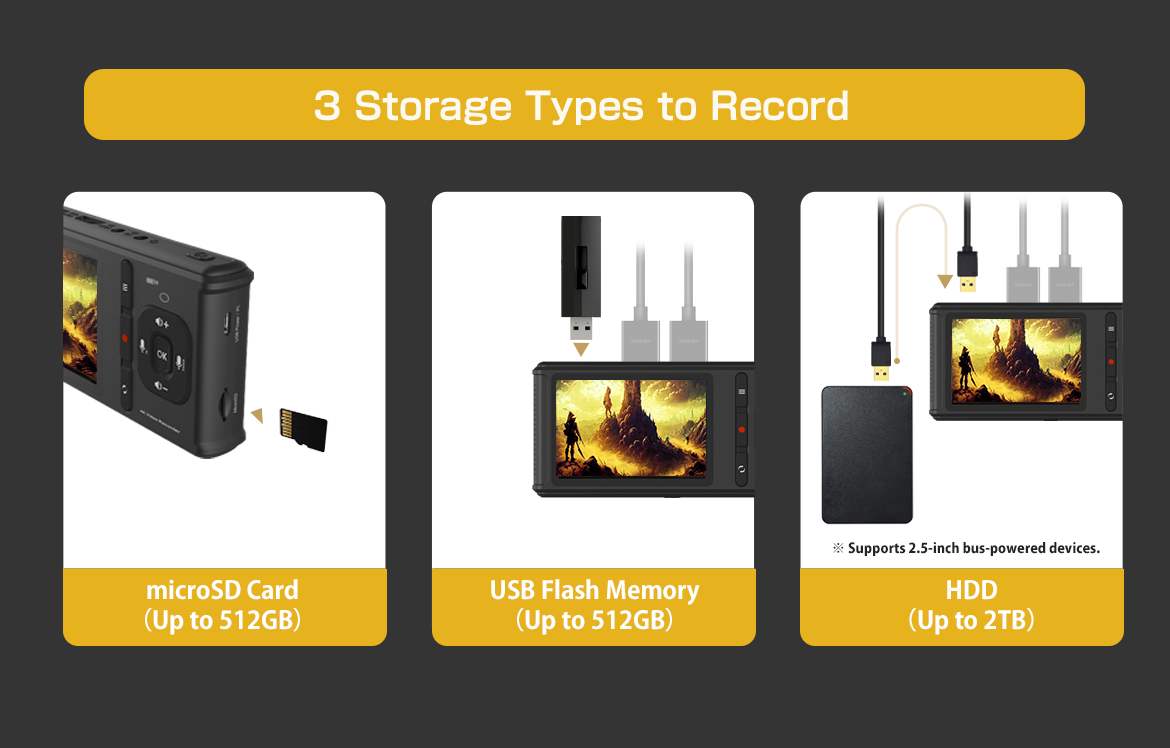

Compatible Storage512GB(USB Flash Drive / microSD)、 HDD 2TB（2.5 Inches Recommended）
Weight155g
Product SizeW142 × D68 × H22 mm
Built-in Speaker Out１W
Power SupplyDC 5V, 2A
